4K/12MP 3.5x Module Igwefoto netwọk mbugharị NDAA


> 1/2.3” Sony Exmor CMOS sensọ.
> Mbugharị ngwa anya 3.5x siri ike (3.85 ~ 13.4mm).
> Max.Mkpebi 12MP (4000x3000).
> Na-akwado Defog Electronic
> Mmepụta iyi vidiyo abụọ, netwọkụ na-akwado.
> Nkwado dị iche iche OSD
> Na NOVATEK mgbawa arụmọrụ dị elu.


Nkọwapụta

Akụkụ

Nlereanya

SG-ZCM8003NK

Ihe mmetụta

Ihe mmetụta onyonyo 1/2.3" Sony Starvis na-aga n'ihu nyocha CMOS
Pixels dị irè Ihe ruru.12.93 megapixel

oghere

Ogologo Focal 3.85mm ~ 13.4mm, 3.5x Optical mbugharị
oghere F2.4~F5.03
Mpaghara nlele H: 82°25°
Mechie Ogologo Nlekwasị anya 1m ~ 2m (obosara~Tele)
Ọsọ mbugharị Ihe ruru.2.5s (Optikal Wide~Tele)
Ogologo DORI(mmadụ) Chọpụta Lelee mara Chọpụta
346m 137m 69m 34m

Vidiyo

Mkpakọ H.265/H.264/H.264H/MJPEG
Ike gụgharia 3 iyi
Mkpebi 50Hz: 10fps @ 12MP (4000×3000), 25fps@8MP(3840×2160)60Hz: 10fps@12MP(4000×3000), 30fps@8MP(3840×2160)
Ọnụego Bit Video 32kbps ~ 16Mbps
Audio AAC / MP2L2

Netwọk

Nchekwa Kaadị TF (256 GB), FTP, NAS
Usoro netwọkụ Onvif, HTTP, HTTPS, IPv4, IPV6, RTSP, DDNS, RTP, TCP, UDP
Multicast Nkwado
Ihe omume izugbe Motion, Tamper, SD kaadị, netwọk
IVS Tripwire, Nchọpụta ngere cross, ntinye, ihe gbahapụrụ agbahapụ, ime ngwa ngwa, nchọpụta ebe a na-adọba ụgbọala, atụmatụ mkpokọta igwe mmadụ, ihe na-efu efu, nchọpụta nlegharị anya.
Oke S/N ≥55dB (AGC Gbanyụọ, Ibu ON)
Opekempe ọkụ Agba: 0.5Lux/F2.4;
Mbelata mkpọtụ 2D/3D
Ụdị ngosi Akpaaka, ụzọ oghere, ụzọ ihe mkpuchi, Nweta ụzọ, akwụkwọ ntuziaka
Nkwụghachi ụgwọ ngosi Nkwado
Ọsọ shutter 1/3 ~ 1/30000s
BLC Nkwado
HLC Nkwado
WDR Nkwado
Ọcha Balance Ụgbọala, akwụkwọ ntuziaka, Ime ụlọ, N'èzí, ATW, Sodium oriọna, Street oriọna, eke, Otu Push
Ụbọchị/abalị Eletriki, ICR (Anya/Aka ntuziaka)
Ụdị elekwasị anya Nchekwa onwe, akwụkwọ ntuziaka, Semi akpaaka, ngwa ngwa ngwa ngwa, ngwa ngwa Semi akpaaka, Otu Push AF
Eletrọnịkị Defog Nkwado
tụgharịa Nkwado
EIS Nkwado
Mbugharị dijitalụ 16x
Njikwa Mpụga TTL
Interface 4pin Ethernet ọdụ ụgbọ mmiri, 6pin ike & UART ọdụ ụgbọ mmiri, 5pin Audio ọdụ ụgbọ mmiri.
Protocol nzikọrịta ozi SONY VISCA, Pleco D/P
Ọnọdụ ọrụ (-10°C~+60°C/20% ruo 80%RH)
Ọnọdụ Nchekwa (-20°C~+70°C/20% ruo 95%RH)
Ịnye ọkụ DC 12V
Oriri ike Ike static: 3.5W, ike egwuregwu: 4.5W
Akụkụ (L*W*H) 55mm * 30mm * 40mm
Ibu 55g

  • Nke gara aga:
  • Osote:

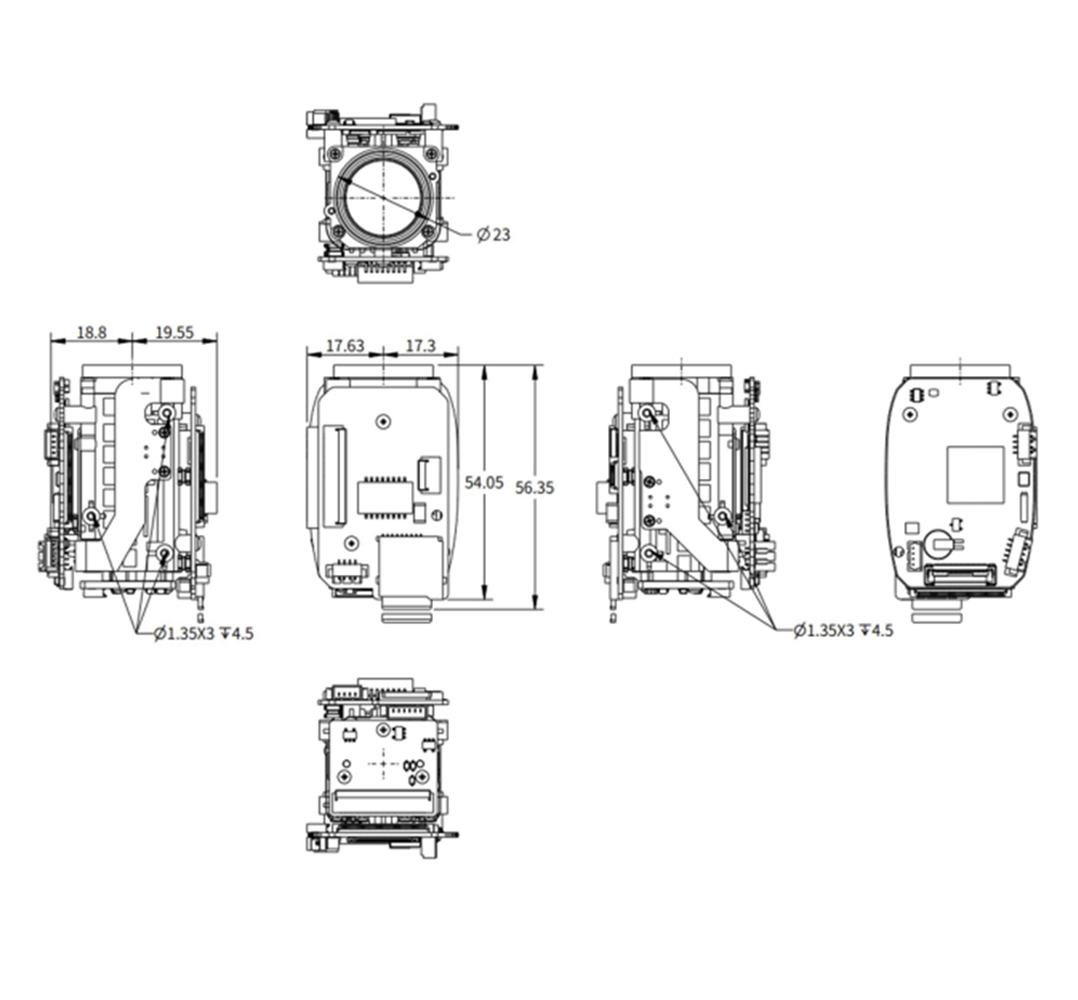

  • D-SG-ZCM8003NK
