1000m anya 808nm Infrared Laser Illuminator Module
Nlereanya | SG-IR808-1K |
| Ogologo dị irè | ≥1000m |
| Ụdị | EEL (Edge Emitting Laser) |
| Ogologo ogologo | 808± 10nm (940nm, 980nm maka nhọrọ) |
| Ike ntinye | ≤32W |
| Ike Laser Chip | 10W |
| Mpụta Ike ọkụ | 7 ~ 8W |
| Laser Beam Angle | Ebe dị anya 0.8°, Ogologo dị irè>1000m, dayameta ntụpọ beam＜φ28m |
| N'akụkụ akụkụ 30°, Ogologo dị irè>80m | |
| Ụdị njikwa | UART_TTL, RS-485, akwụkwọ ntuziaka |
| Interface nkwurịta okwu | RS-485, TTL232, njikwa akwụkwọ ntuziaka |
| Protocol nzikọrịta ozi | Pelco - D (9600bps ndabara, 4800bps, 2400bps maka nhọrọ) |
| Ụdị ọrụ | Na-aga n'ihu |
| Ndụ ije ozi | > 30000h |
| Ike ntinye | DC12V±10%, 2.1A±0.2A |
| Okpomọkụ arụ ọrụ | -35°C~+55°C |
| Okpomọkụ nchekwa | -50°C~+100°C |

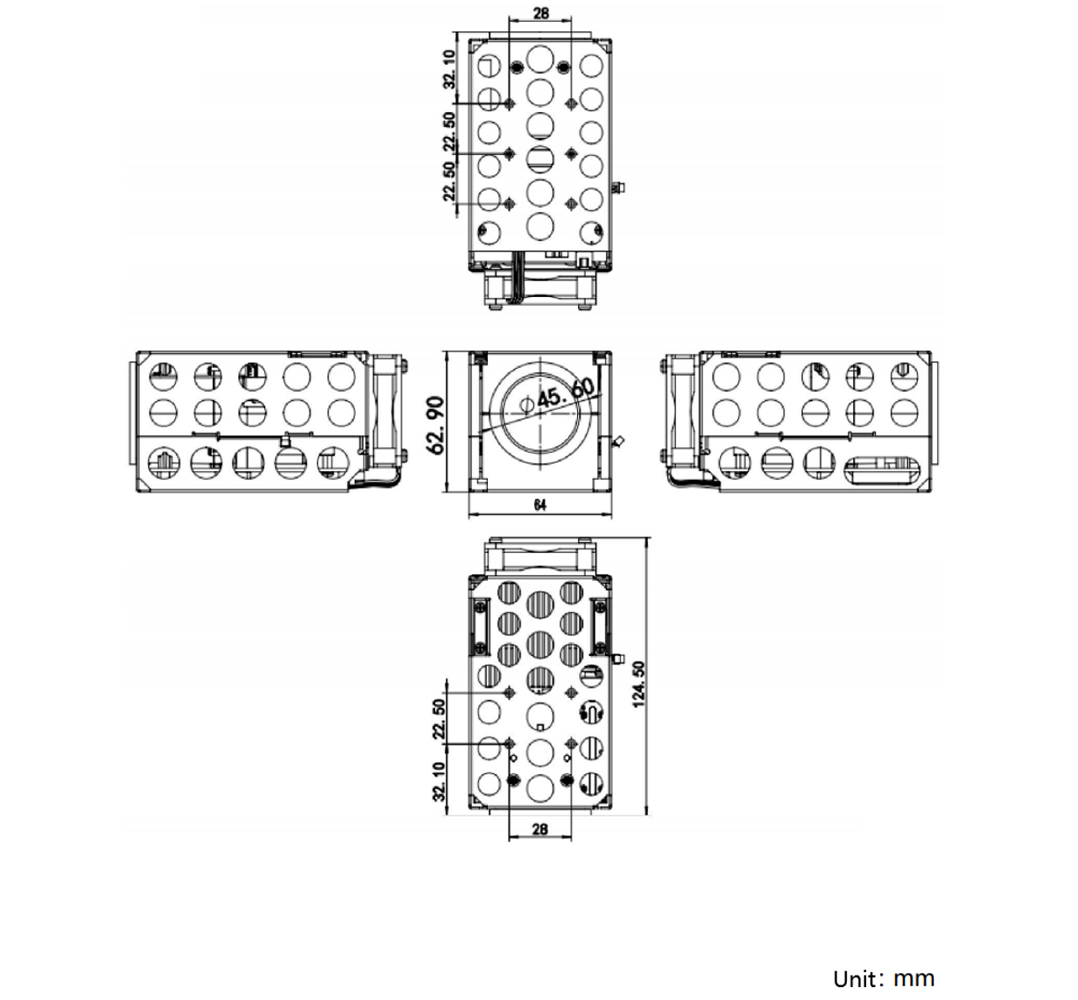

| Akụkụ | 125mmx63mmx64mm |
| Ibu | 400g |
