1280x1024/640x512 Netwọk na Digital Dual Output SWIR Camera Module
Nkọwapụta
Nlereanya | SG-SWZ12ND2-17510 | SG-SWZ06ND2-17510 | |
Sensọ | Ihe mmetụta onyonyo | 1/2 ″ SONY InGaAs Global Shutter SWIR Sensọ IMX990 | 1/4 ″ SONY InGaAs Global Shutter SWIR Sensọ IMX991 |
| Pixels dị irè | Ihe ruru. 1.34MP | Ihe ruru. 0.34MP | |
| Nha Pixel | 5μm | ||
oghere | Ogologo nzaghachi | 1000-1700nm | |
| ICR | Na-akwado ụdịdị 2: eriri obosara: 1000 ~ 1700nm eriri dị warara: 1450 ~ 1700nm | ||
| Ogologo Focal | 17mm ~ 510mm, 30x Optical mbugharị | ||
| oghere | F2.8~F5.5 | ||
| Mpaghara nlele | H: 21.3°~0.71°, V: 17.1°~0.57°, D: 27.1°~0.92° | H: 11.6°~0.37°, V: 9.3°~0.3°,D: 14.8°~0.47° | |
| Mechie Ogologo Nlekwasị anya | 1m ~ 10m (obosara~Tele) | ||
| Ọsọ mbugharị | Ihe ruru. 7s (Optikal Wide~Tele) | ||
Vidiyo | Mkpakọ | H.265/H.264/H.264H/MJPEG | |
| Mkpebi | 25/30/50/60fps @ 1280×1024 | 25/30/50/60fps @ 640×512 | |
| Ọnụego Bit Video | 32kbps ~ 16Mbps | ||
| Audio | AAC / MP2L2 | ||
| Vidiyo LVDS | 25/30/50/60fps@2MP (1920×1080) | ||
Netwọk | Nchekwa | Kaadị TF (256 GB), FTP, NAS | |
| Usoro netwọkụ | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multicast | Nkwado | ||
| Nkwalite ngwa ngwa (LVDS) | Naanị nwere ike kwalite firmware site na ọdụ ụgbọ mmiri Network | ||
| Ihe omume izugbe | Motion, Tamper, SD kaadị, netwọk | ||
| IVS | Tripwire, Nchọpụta ngere Cross, Mbanye, Ihe Ahapụhapụrụ, Ọsọ-Ntugharị, Nchọpụta ebe a na-adọba ụgbọala, Ntụle Mgbakọ igwe mmadụ, Ihe Na-efu efu, Nchọpụta Ntugharị. | ||
| Mbelata mkpọtụ | 2D/3D | ||
| Ụdị ngosi | Akwụkwọ ntuziaka, akpaaka, ụzọ oghere, ụzọ ihe mkpuchi | ||
| Nkwụghachi ụgwọ ngosi | Nkwado | ||
| Ọsọ shutter | 1/1 ~ 1/30000s | ||
| Ụdị mgbado anya | Akpaaka/Akwụkwọ ntuziaka/Ọkara akpaaka | ||
| Eletrọnịkị Defog | Nkwado | ||
| Mbelata ọkụ ọkụ | Nkwado | ||
| tụgharịa | Nkwado | ||
| EIS | Nkwado | ||
| Mbugharị dijitalụ | 16x | ||
| Njikwa Mpụga | TTL | ||
| Interface | 4pin Ethernet ọdụ ụgbọ mmiri, 6pin serial & ike ọdụ ụgbọ mmiri, 5pin Audio port.30pin LVDS | ||
| Protocol nzikọrịta ozi | SONY VISCA, Pleco D/P | ||
| Ọnọdụ ọrụ | -30~+60°C/20%~80%RH | ||
| Ọnọdụ Nchekwa | -40~+70°C/20%~95%RH | ||
| Ịnye ọkụ | DC 12V | ||
| Oriri ike (TBD) | Nkeji: 6W; Oke: 11W | ||

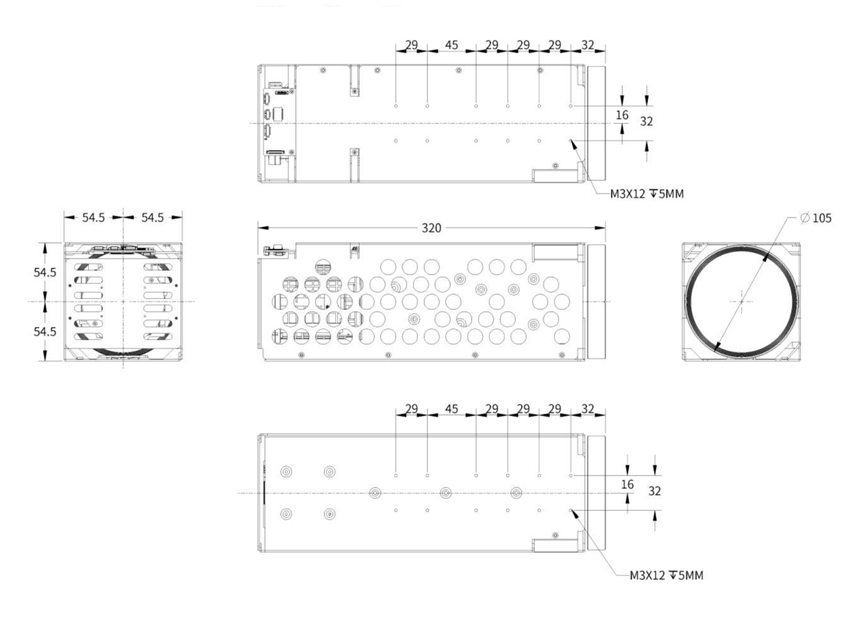

| Akụkụ (L*W*H) | Ihe ruru. 320mm * 109mm * 109mm | ||
| Ibu | 3.1kg | ||
Njikọ netwọkụ
| Ụdị | Nọmba PIN | Aha PIN | Nkọwa |
| J2_4pin Ethernet Interface | 1 | ETHRX- | Ọdụ ụgbọ mmiri Ethernet na-agbanwe agbanwe, Ịntanetị RX- |
| 2 | ETHRX+ | Ọdụ ụgbọ mmiri Ethernet na-agbanwe agbanwe, ịntanetị RX + | |
| 3 | ETHTX- | Ọdụ ụgbọ mmiri Ethernet Adaptive, Internet TX- | |
| 4 | ETHTX+ | Ọdụ ụgbọ mmiri Ethernet na-adaba adaba, Internet TX+ | |
| J3_6pin Ike & UART Interface | 1 | DC_IN | DC12V |
| 2 | GND | GND | |
| 3 | RXD1 | TTL Ọkwa 3.3V, Pelco Protocol | |
| 4 | TXD1 | TTL Ọkwa 3.3V, Pelco Protocol | |
| 5 | RXD0 | Ọkwa TTL 3.3V, Visca Protocol | |
| 6 | TXD0 | Ọkwa TTL 3.3V, Visca Protocol | |
| J1_5pin Audio Interface | 1 | AUDIO_OUT | Ọdịnihu (N'ahịrị pụta) |
| 2 | GND | GND | |
| 3 | AUDIO_IN | Ọdịda n'ime (akara n'ime) | |
| 4 | GND | GND | |
| 5 | NC | NC |
Njikọ LVDS
| Port | Nọmba | Aha PIN | Nkọwa |
| J4_30pin LVDS Interface (yiri SONY 30pin Digital Interface) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | GND | GND | |
| 10 | GND | ||
| 11 | GND | ||
| 12 | GND | ||
| 13 | DC | Mmepụta DC (DC+7V~+12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | TTL larịị 3.3V, VISCA protocol, otu na TXD0 na J3_6pin Port. Mana enweghị ike ijikọ n'otu oge. | |
| 19 | UART1_RX | TTL larịị 3.3V, VISCA protocol, otu na RXD0 na J3_6pin Port. Mana enweghị ike ijikọ n'otu oge. | |
| 20 | GND | GND | |
| 21 | TXOUT0- | ||
| 22 | TXOUT0+ | ||
| 23 | TXOUT1- | ||
| 24 | TXOUT1+ | ||
| 25 | TXOUT2- | ||
| 26 | TXOUT2+ | ||
| 27 | TXOUTCLK- | ||
| 28 | TXOUTCLK+ | ||
| 29 | TXOUT3- | ||
| 30 | TXOUT3+ |
